Overview

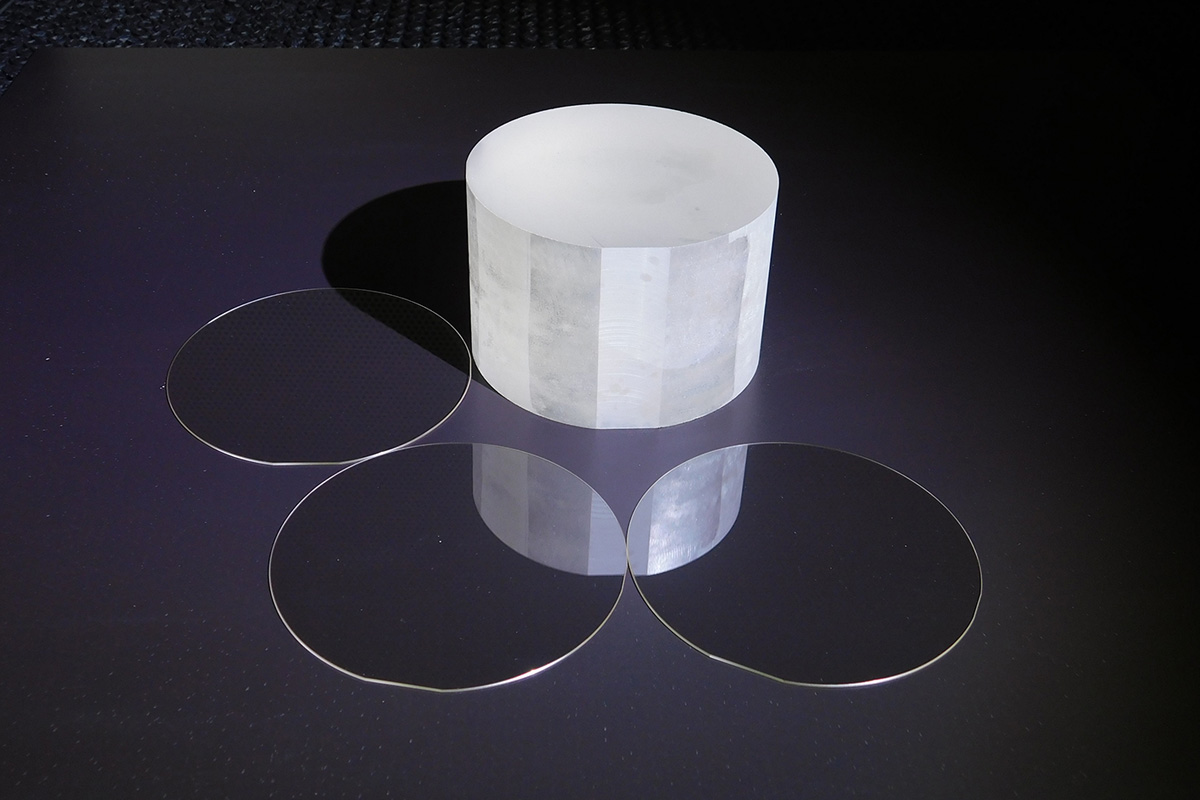

The SGGG substrate is a seed crystal of Faraday rotator produced from Bi rare earth garnet by the Liquid Phase Epitaxy(LPE method).
Quality characteristics
| SGGG | 4“ | 3“ | |
|---|---|---|---|
| Growth method | CZ (Czochralski) | ||
| Crystal | Single Crystal | ||
| Outer dimensions | Diameter (mm) | 100.0 ± 0.13 | 76.2 ± 0.2 |
| Thickness (μm) | 600～ ± 25 | ||
| Orientation Flat (mm) | 20.0 ± 5/-2 | ||
| Second Orientation Flat (mm) | 10.0 ± 5/-2 | ||
| Orientation and Accuracy | Main surface orientation (deg) | [111] ± 0.3 ° | |
| Orientation Flat (deg) | [- 110] ± 2 | [- 110] ± 1 | |
| SOF (deg) | [- 1 - 1 - 2] ± 1 | ||
| TTV(μm) | ≦6 | ||
| Surface:Front side | Polished | ||
| Surface:Back side | Polished | ||
For details, browse this Web site SMM Precision Co., Ltd
